Striking a Balance Between Portability and PRO: The XPP…

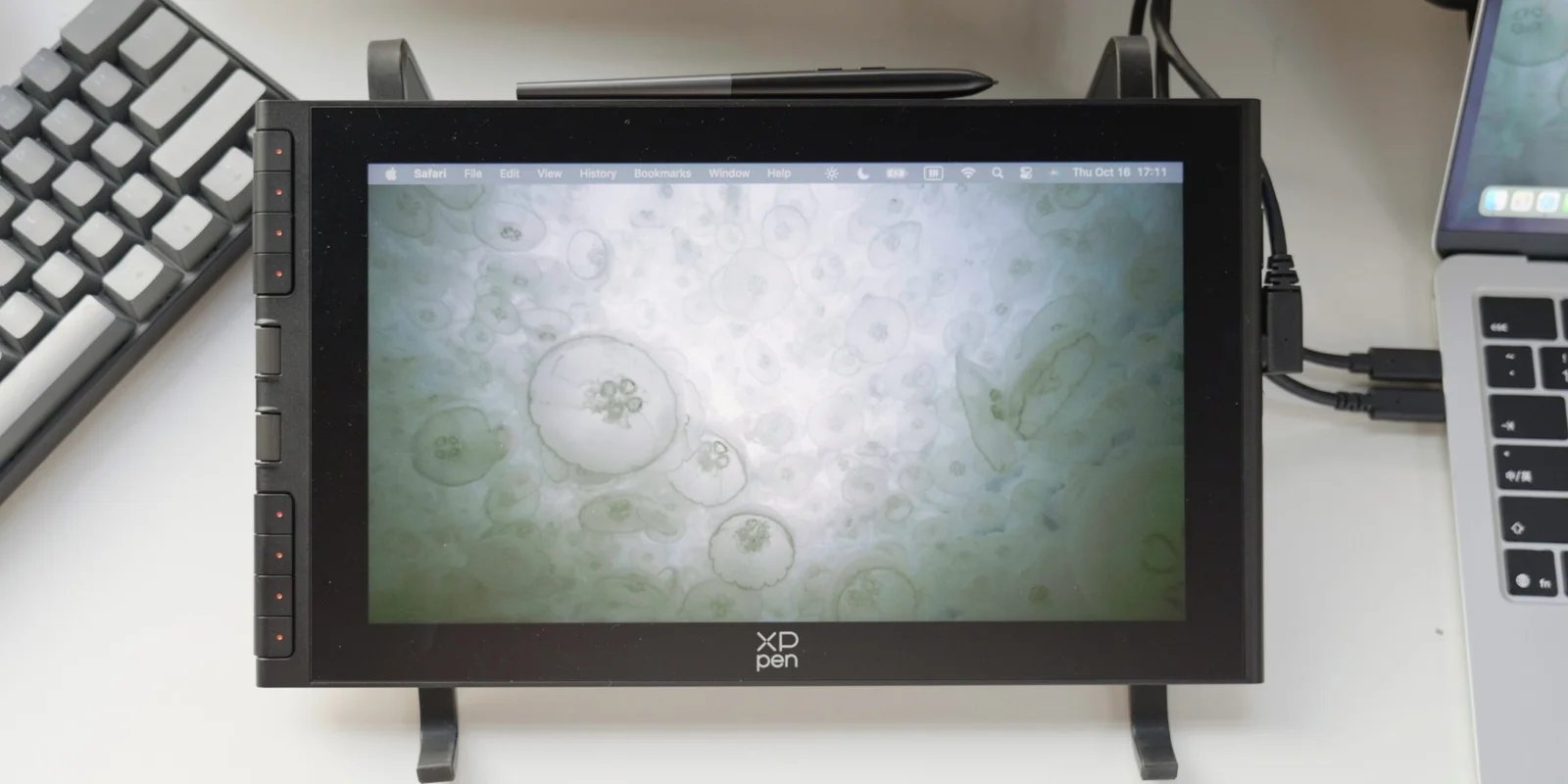

XPPEN Artist 12 3rd

For digital creators, the age-old dilemma persists: professional-grade drawing displays demand size and weight that make them impractical for desk use. At the same time, portable tablets often cut corners on the precision and functionality that define “pro” workflows. With 20 years of expertise in digital drawing, XPPen’s 12-inch Artist 12 3rd targets this gap directly—anchored by a featherlight 719g build and an upgraded stylus, its hardware is engineered to deliver mobility without compromise. So, we will examine whether, after addressing the portability issue, it still provides professional creative capabilities.

Core Hardware

The advantages of the XPPen Artist 12 3rd primarily lie in its “stylus” and “screen”. Let’s start with a set of key specifications: it boasts 16,384 levels of pressure sensitivity, enabling precise detection of pressure intensity—ink flows with the lightest touch—and a positioning error of less than 0.2 millimeters. These metrics are highly professional for their price range. Additionally, it maintains an ultra-lightweight profile of 719 grams.

over, the X-Dial and its related shortcut functions are truly impressive. Firstly, the X-Dial is exceptionally easy to operate. Common tasks such as rotating the canvas and adjusting brush thickness can be done with just a turn, which naturally fits creative thoughts and greatly boosts creative efficiency. Then, the eight customizable shortcut keys can be pressed not only from the side but also from the front, and the key feedback is very clear, letting users know for certain that the commands have been executed.

Additionally, the new key layout narrows the bezel, resulting in a higher screen-to-body ratio. Visually, it is more immersive, enabling creators to focus more on their works. Whether it’s digital painting, illustration, or design work, these functions can adapt well to the workflow and become extremely practical and helpful assistants in the creative process, making the entire creative process both efficient and smooth.

Several thoughtful design details further enhance its usability. The stylus can be “magnetically attached” to the device: a strong magnetic module on the right side of the display instantly secures the stylus with a satisfying “click”. The magnetic force is so robust that we conducted a test—pulling the stylus could lift an object three times the stylus’s weight without it detaching. This eliminates the need for a stylus case and the worry of misplacing the stylus, a rare feature among 12-inch pen displays.

All-in-one connectivity via a single cable: It features a full-function USB-C port that handles charging, display output, and data transfer simultaneously. Unlike some pen displays that require separate HDMI and power cables—forcing users to carry a tangled mess of wires—this design reduces cable clutter by 60%, significantly enhancing portability.

Adjustable stand with storage consideration: The included stand, crafted from durable composite material, offers adjustable angles from 0° to 60° and remains stable even with a 500-gram load. However, due to the display’s slim 12-millimeter thickness, the stand cannot lie completely flat against the device when folded, adding approximately 15 millimeters to its storage footprint—roughly the thickness of a smartphone.

Practical Experience

When creating illustrations indoors, the performance of the X4 smart stylus is impressive. It accurately detects pressure variations, making it ideal for intricate details like hair strands or leaf veins. The drawing experience feels natural, eliminating the need to “press hard” as with older stylus models, which reduces wrist fatigue during extended sessions. It can render 128 distinct shades from light gray to deep black—double the industry average of 64 levels—with detail fidelity comparable to traditional paper drawing.

Near-zero latency: Professional testing showed that the latency between the stylus tip touching the screen and the image appearing ranges from 28 to 32 milliseconds, consistently meeting or exceeding the official 30-millisecond claim. When drawing quick circles or ellipses, there is no “trailing” effect. The difference in performance compared to the 11-inch iPad Pro is negligible, making it fully suitable for professional drawing tasks.

Left-handed users will find it intuitive: We specifically tested it with left-handed users. When drawing diagonal lines with the stylus tilted at 60°, the line angle error was only 0.8°. Additionally, a one-click “Left-Hand Mode” eliminates the need for cumbersome system adjustments.

One minor adaptation required: The original “bullet-shaped” nib has a slightly slippery surface, which may feel “hard to grip” during the first three uses. Replacing it with the included official “matte nib” resolves this issue, increasing friction by 40% and delivering a feel similar to drawing on 80-gram sketch paper.

Screen Performance

Authentic paper-like texture: The screen surface is coated with AG nano-etched glass. Under a microscope, it reveals dense 1.2-micron protrusions, closely mimicking the fiber structure of real sketch paper. In practice, the friction between the stylus nib and the screen is higher than that of regular glass. With a friction coefficient of 0.35, it prevents lines from straying due to slippage, making it highly comfortable for artists accustomed to traditional paper drawing.

Effective anti-glare, with limitations in direct sunlight: Testing on a balcony at noon showed a screen reflectivity of only 8.5%, ensuring clear visibility of image details. However, the screen’s maximum brightness is 260 nits. In direct sunlight environments, such as parks, the screen angle must be adjusted to over 45° to avoid “whitening” of the display.

Accurate color reproduction, reducing repetitive adjustments during editing: The screen covers 99.2% of the sRGB color gamut and 97.1% of the Adobe RGB color gamut, with a color accuracy of just 1.1—top-tier performance for its price range. When editing images in Photoshop, exported colors such as “sky blue” and “vegetation green” are nearly indistinguishable from those displayed on professional monitors, reducing post-color correction time by 60%.

Compatibility

The Artist 12 Gen3 supports four major operating systems: Windows, macOS, Android, and ChromeOS. We tested it with a Windows 11 laptop, MacBook, and 11-inch Huawei MatePad Pro. In all cases, the drivers installed successfully on the first attempt, with no issues such as “device not recognized” or “non-functional shortcut keys”.

However, after extended use, we identified three areas requiring optimization: Screen brightness: At 260 nits, visibility is limited to bright light. An anti-glare hood is recommended for outdoor use. Stand stability: The foldable stand has a maximum load capacity of only 500 grams, leading to slight wobbling during vigorous drawing. A third-party desktop stand is advised.

Nib compatibility: The initial bullet-shaped nib has low friction; replacing it with the matte nib is necessary to achieve the optimal drawing feel.

Conclusion

While the XPPen Artist 12 3rd is not a perfect pen display, it addresses the category’s core dilemma – “professional devices can’t be portable, while portable devices are not Pro enough” through its “lightweight design”. The overall performance surpasses that of most comparable products, empowering artists to create with ease.
